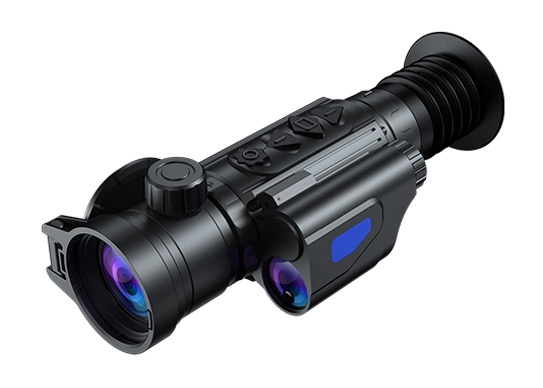

Thermal Monoculars XM-LRF Series

Sensor

Type

uncooled VOx

uncooled VOx

Resolution, pixels

384x288   super sensitive

640x512   super sensitive

Frame rate

50 Hz

50 Hz

Pixel size, μm

12μm

12μm

NETD

<25mK

<18mK

Optical characteristics

Objective lens

f35mm/50mm, F1.0

f35mm/50mm, F1.0

Magnification

2.8X/4X

1.7X/2.5X

Continuous digital zoom

x1 / x2 / x4 / x8

x1 / x2 / x4 / x8

Eye relief

35mm/50 mm

35mm/50 mm

Field of view （degree）

7.5°X5.7°/5.3°X4.0°

12.5°X9.4°/8.8°X6.6°

Dioptre adjustment

+5/-5 D

+5/-5 D

Detection distance（1.7m high 0.5m wide）

1750m/2500m

1750m/2500m

Close-up range

5m-∞

5m-∞

Display

Colour Palettes

Black Hot, White Hot, Red Hot, Fusion, Sky

Black Hot, White Hot, Red Hot, Fusion, Sky

Type / Resolution

0.39 inch / AMOLED / 1024X768

0.39 inch / AMOLED / 1024X768

Operational characteristics

3D Gyroscope

yes

yes

Power supply

3-4.2 V

3-4.2 V

Battery

18650 /3500mAh

18650 /3500mAh

External power supply

5V (USB)

5V (USB)

Operating time (at t=22℃)

5 hours

5 hours

Max. recoil power, Joules

10,000J

10,000J

Waterproof rating

IP66

IP66

Operating temperature

﹣20℃...50℃

﹣20℃...50℃

Dimensions

224X92X69mm

224X92X69mm

Weight

703g

723g

Video recorder

Video / photo resolution

1024x768

1024x768

Video / photo format

.mp4 / .jpg

.mp4 / .jpg

Memoery type

Built-in 32G memory card

Built-in 32G memory card

Wifi channel

Frequency

2.4GHz

2.4GHz

Standart

802.11 b/g

802.11 b/g

Line-of-sight reception range

15m

15m

Rangefinder

Wavelength

905nm

905nm

Max. measuring range

1200m

1200m

Measuring accuracy

+/- 1m

+/- 1m
