Safe city, large-scale factory, intelligent transportation, on-board system, airport port, oil depot, security department, prison, water conservancy and electric power, energy mining, ecological protection, administrative law enforcement, fishery and sea surveillance, border defense and other night vision monitoring fill light.
Optical and Electrical Parameters
Parameters | IR-1550-2000-S-00 |

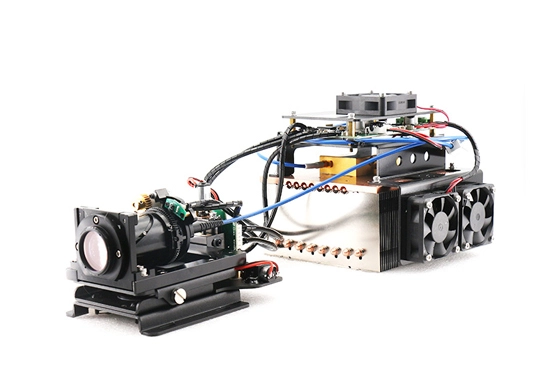

Product Type | SWIRLaser IlluminationModule |
Product Name | IR-1550-2000-S-00 |

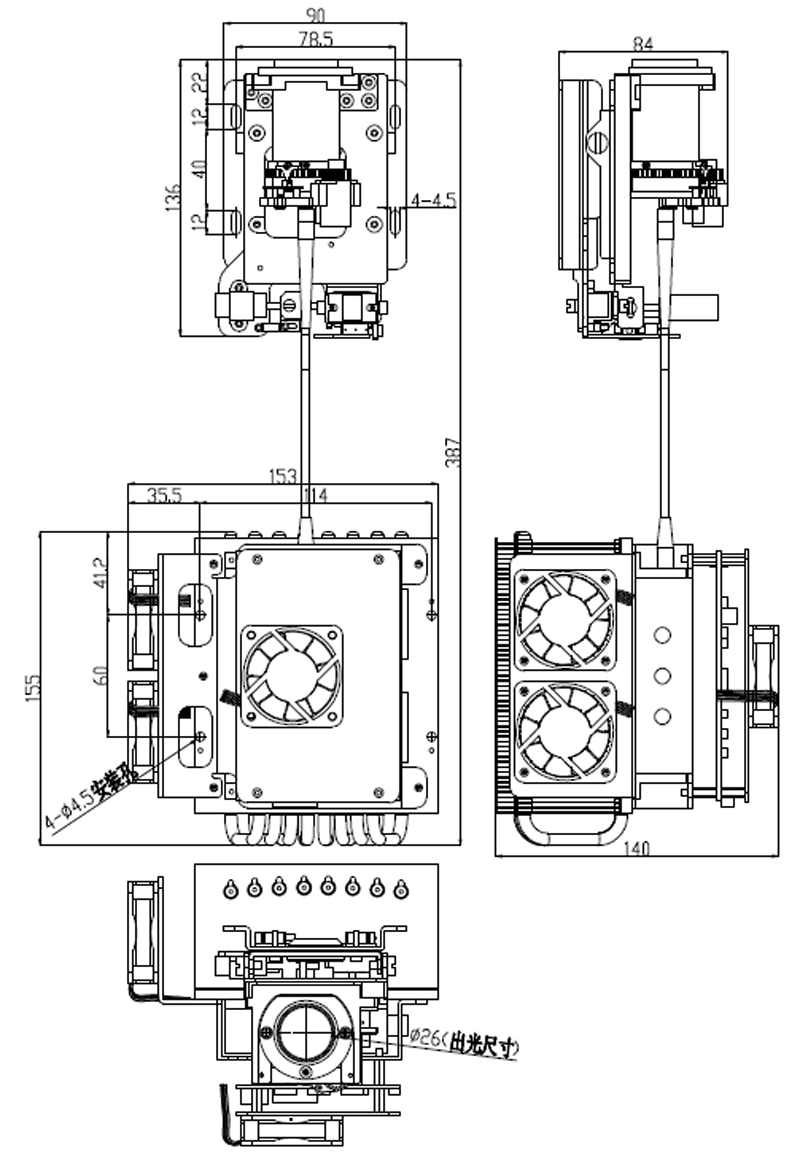

Size | L*W*H=387*153*140 mm |
Weight | ＜3.50kg |
Input Voltage | DC 24V±10% |
Input Current | ≤3.0A |
Initialization Time | <10s |
Consumed Power | ≤70W |
Output Optical Power | ≥8W |
Laser Center Wavelength | 1550nm±10nm（@25℃） |
IlluminationAngle | 0.8°~70°(Continuous zoom) |
Spot Diameter | φ19m(@0.8° @2000m) |
LongestIllumination Distance | ≥2000m |

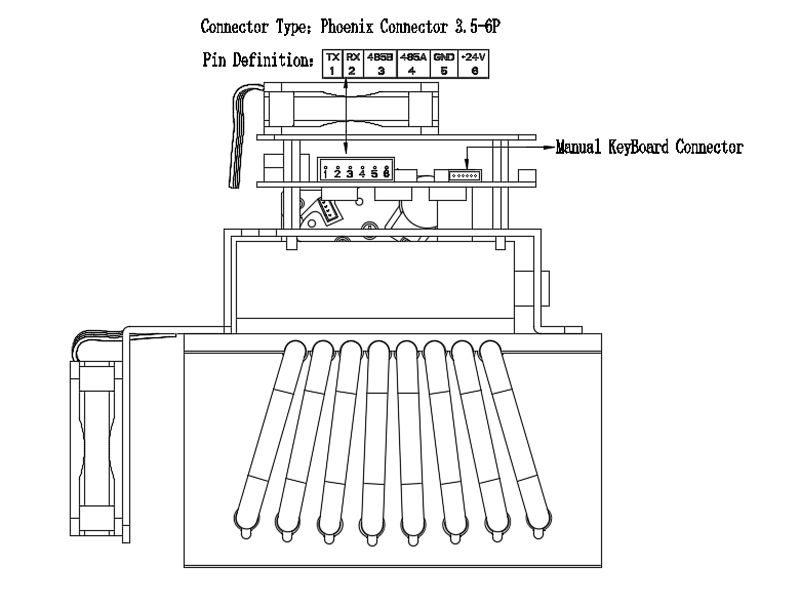

Communication Interface | RS-485/Serial portTTL(Default: 9600bps) |
Communication Protocol | Pelco_D |
Operating Mode | Continuous Working Mode |
Operating Life | ＞20000H |
Storage Temperature | -40℃~65℃ |
Operating Temperature | -35℃~55℃ |
Laser Safety Level | Class IV (IEC 60825) |
Laser Safety Distance | ≥50m(@0.8°，@Pomax) |
Environmental Standards | ROHS 2.0 |
