InGaAs 1024×1/12.5μm Linear Scanning detector provides 2-output channels analog video, the response waveband is 0.9μm ~ 1.7μm (which can be extended to 0.4 μm). With high frame rate (maximum line frequency > 30kHz), high linearity and response uniformity. The peak quantum efficiency is greater than 70% and the effective pixel rate is more than 99.5%.

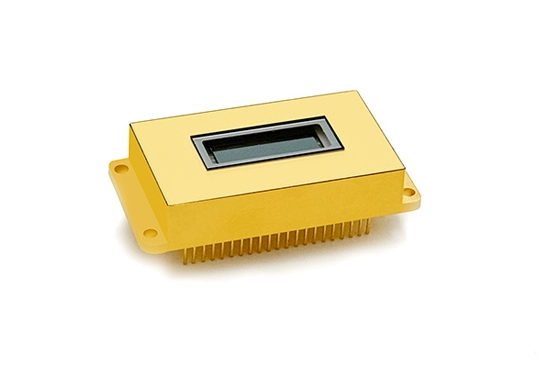

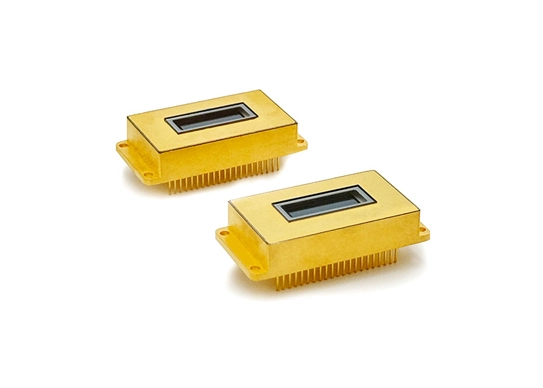

The detector is packaged with 42pin metal shell, with pin diameter of 0.45mm, spacing of 1.27mm and operation temperature range of − 40 ℃ ~ + 70 ℃.
SWIR I0.9μm ~ 1.7μm (can be extended to 0.4 μm）InGaAs linear detector
1024(H) × 1 (V) Pixel size
12.5 pixel pitch
DIP 21 × 2pin metal shell package
2-output channels analog video
Pixel operability >99.5%
Quantum efficiency: > 70%
Tec thermoelectric cooler built in
Sensor | GH-SWLA-1024 |
Format | 1024×1 |
Pixel pitch | 12.5µm × 12.5µm/12.5µm × 80µm |
Spectral response | 0.9±0.1µm～1.7±0.1µm（can be extended to 0.4 µm) |
Packaging | 42-pin dip metal shell package |
Dimension | 19.5mm ×40 mm ×6 mm |
Pixel operability | ≥99.5% |
Quantum efficiency | ≥ 70% |
Non-uniformity | <6% |
Output channels | 512×1 (1-output channel), 1024×1 (2-output channels) |
Channel gain capacitance | 16 stalls, 6.4fF to 2.1pF |
Analog output range | 1.8V (design value) |
Integration/readout mode | Snapshot, integral readout (ITR), integral simultaneous readout (IWR) |
Data output rate | Typical value: 18MHz, up to 22 MHz |
Minimum integration time | 5µs |
Power dissipation | 3.6V ±0.05V |
Power dissipation | 300mW(1024×1) |
Cooling | Tec thermoelectric cooler |
