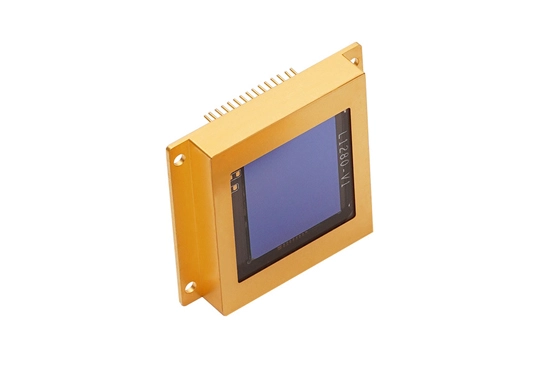

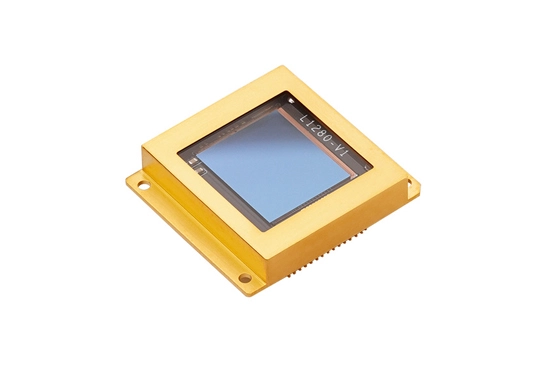

SWIR InGaAs Detector GH-SW1280

The GH-SW1280 SWIR sensors utilize sophisticated InGaAs linear image sensor technology to provide extraordinary high-resolution imaging. These GH-SW1280 SWIR sensors are hermetically sealed for added safety and can function at temperatures ranging from -40°C to 70°C, with the same range for storage.

It is well-suited to a wide range of applications, including long-range surveillance in adverse weather conditions (fog, haze, rain, smoke, dust), hyperspectral imaging, remote sensing, and science.

Get a Quote 

Features of SWIR InGaAs Detector GH-SW1280

Array Format: 1280x1024
Pixel Pitch: 15μm
Spectral Response: 0.9µm-1.7µm / 0.4um-1.7µm (optional)

Specification of SWIR InGaAs Detector GH-SW1280

Basic Specs

SENSOR	GH-SW1280
Material	InGaAs
Array Format	1280x1024
Pixel Pitch	15μm
Spectral Response	0.9µm-1.7µm 0.4um-1.7µm (optional)

ROIC

SENSOR	GH-SW1280
Integration Type	Snapshot
Readout Modes	ITR, IWR, CDS
Integration Time	0.2μs to full frame
Frame Rate Max	100 Hz
Maximum Pixel Rate	22MHz
Output Swing	≤2V
Temperature Sensor	Yes

Key Specs

SENSOR	GH-SW1280
Quantum Efficiency	>70% (1.0µm -1.6µm )
Readout Noise	40e- @HG
Dark Current	30fA@0.1V&18℃
Pixel Operability	>99.5%(Minimum)
Non Uniformity	< 5%

Package

SENSOR	GH-SW1280
Dimensions	40 × 36 ×7.2mm
Window Material	Quartz/ sapphire
No.of Pin	30-pin Metal DIP Package
Packaging Type	Hermetically sealed
Operating Temperature	- 40℃ ~ 70℃
Storage Temperature	- 40℃ ~ 70℃
