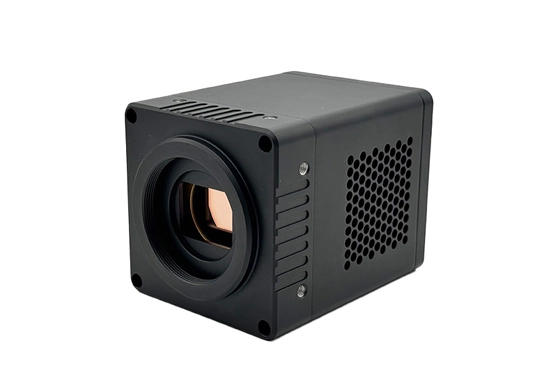

SWIR InGaAs Camera 640x512 GHCT-SW640U3/CL/GigE

The SWIR Camera based on an in-house developed InGaAs detector with 640x512 pixels. It has the advantages of 1000Hz high frame rate, high quantum efficiency, and low noise. The product adopts CameraLink interface, and users can integrate it into the application system quickly and easily.

With its advanced features and capabilities, this camera is an ideal choice for various applications such as surveillance, astronomy, machine vision, industrial process monitoring, and medical imaging.

Get a Quote 

Features of SWIR InGaAs Camera 640x512 GHCT-SW640U3/CL/GigE

Self-developed SWIR Camera
High Frame Rate, low read-out noise
SDK supporting CameraLink /SDK capture card
TE Cooler

Specification of SWIR InGaAs Camera 640x512 GHCT-SW640U3/CL/GigE

Basic Specs

Type	GHCT-SW640-CL	GHCT-SW640-GigE	GHCT-SW640-U3
Frame Rate	500Hz / 700Hz / 1000Hz	125Hz /145Hz / 180Hz	550Hz
Integration Time	16μs ~1s	25μs ~ 5s	16μs ~1s
Interface	Dual CameraLink Interface	GigE	USB3.0
Software	SDK supporting CameraLink capture card	SDK	SDK
Power Consumption	8.4W (TEC off) / ＜16W (TEC on)	8.4W (TEC off) / ＜16W (TEC on)	/

Key Specs

Sensor	GH-SW640Pro
Resolution	640 x 512
Spectral Response	0.9μm ~ 1.7μm /0.4μm ~ 1.7μm
Pixel Pitch	15μm
Lens Mount	C-Mount
Quantum Efficiency	＞70% (1.0μm ~ 1.6μm)
Full well Capacity	1.8Me-
ADC	8bit / 14bit
Cooling	TEC
Dark Current	30fA@0.1V&18℃
Exposure Mode	Global exposure
Readout Mode	IWR
Power Input	DC 12V
Weight	≤500g (No lens)
Dimensions	68mm x 68mm x 89.1mm (No lens)
Operating Temp	-20 ℃ ~ +60 ℃
Storage Temp	-40 ℃ ~ + 85 ℃
