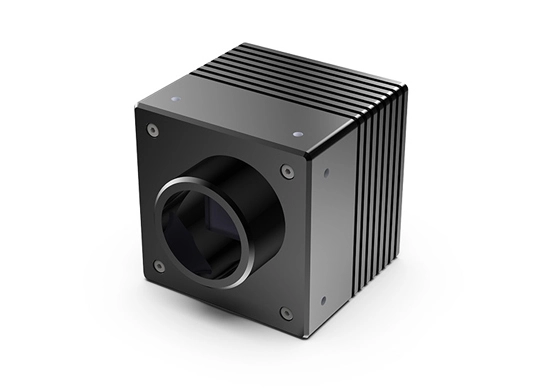

The SWIR Camera series feature a 640 x 512 pixel InGaAs focal plane array (FPA) with a pitch of 15μm. The camera operates in the 900nm – 1700nm wavelength range, which covers the SWIR region of the spectrum. The product has the characteristics of small size, high reliability and excellent environmental adaptability. The product adopts USB3.0 interface , and users can integrate it into the application system quickly and easily.
The camera is a high-performance SWIR camera that offers high sensitivity, low noise, and high resolution for imaging in low-light-level conditions. With its advanced features and capabilities, this camera is an ideal choice for various applications such as surveillance, astronomy, machine vision, industrial process monitoring, and medical imaging.
High Frame Rate
TE Cooler
Low Readout Noise & Power Consumption
Windowing
Key Specs
Type | GHCG-SW640-U3 |
Sensor | GH-SW640Pro |
Shutter Mode | Global Shutter |
Active Area | 9.6mm x 7.2mm |
Resolution | 640 x 512 |
Pixel Size | 15μm |
Frame Rate | 430Hz |
Integration Time | 40μs ~ 1s |
Pixel Format | Mono |
Spectral Response | 0.9μm ~ 1.7μm / 0.4μm ~ 1.7μm |
Dynamic Range | 69.8dB |
SNR | 62.42dB |
Pixel Bit Depth | 8/14 bit |
Power Input | 12V DC, 4.8W (TEC Off ) |
Cooling Method | TEC |
Dimension(L x W x H) | 55mm x 55mm x 60mm |
Lens Mount | C-Mount |
Operating Temp. | -40 ℃ ～ +60 ℃ |
Weight | ＜250g |
Certificate | CE、FCC、RoHS |
Dark Current | HG:26.5e MG:42.8e LG:400e |
Full Well Capacity | HG:8.5Ke MG:63.9Ke LG:1.5Me |
Data Interface | USB3.0 |
