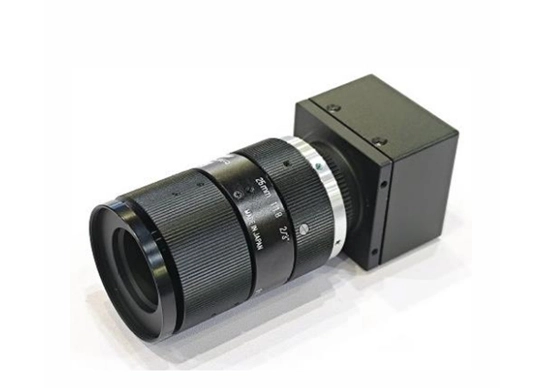

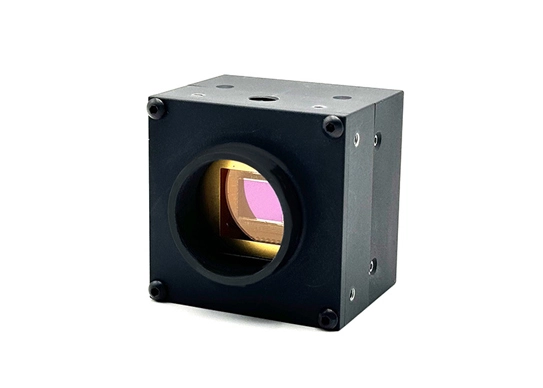

This product is a CQDs SWIR camera , with an absorption band of 400-1700nm, an absorption peak of 1550nm, an imaging array of 640×512, and a pixel size of 15 μm. The image sensor is packaged in a metal tube and refrigerated by TEC, which is stable and reliable. The products can be used in laser analysis, semiconductor detection, article sorting and other fields.
Detecting from VIS to SWIR
Customizable peak response wavelength
C-Mount lens
Product | IR640-940 | IR640-1310 | IR640-1550 |
Pixel Array | 640×512 | ||
Pixel Size | 15μm | ||
Wavelength | 0.4 ~ 1.1μm | 0.4 ~ 1.5μm | 0.4 ~ 1.7μm |
D* | 2e12 Jones | 8e11 Jones | 6e11 Jones |

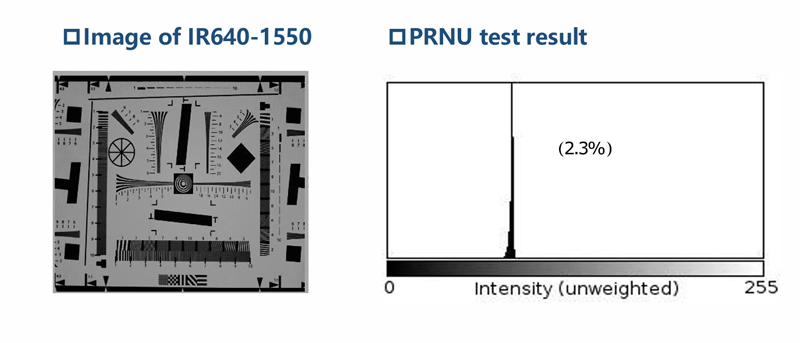

PRNU | ≤3% | ||
Effective Pixels | ≥99% | ||
Readout Noise | 450e- | ||
DC input & power | 5V，<5W（TEC on） | ||
ADC Resolution | 12 bit | ||
Frame Rate | up to 80fps | ||
Interface | Camlink、USB3.0 | ||
Working Temperature | -40℃~﹢65℃ | ||
Storage Temperature | -50℃~﹢85℃ | ||

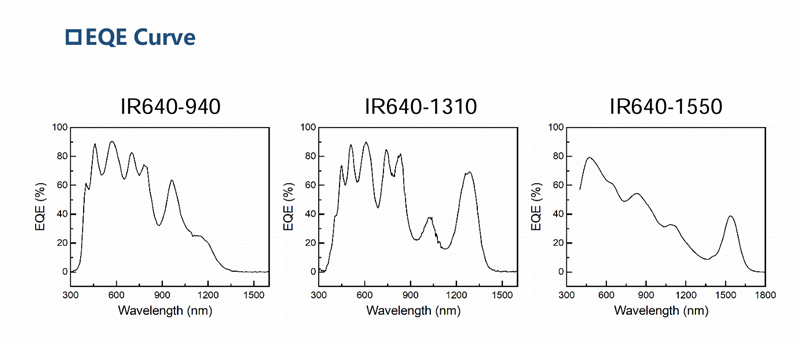

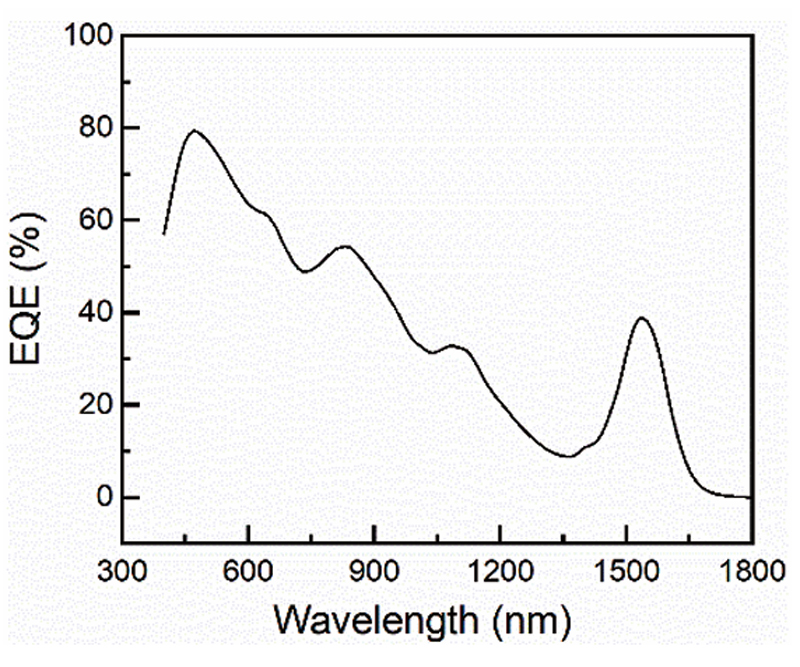

The curve of the external quantum efficiency of this product is shown in the figure below, the absorption band is 400-1700nm, the absorption peak is 1550nm, and the peak external quantum efficiency is 40%.
