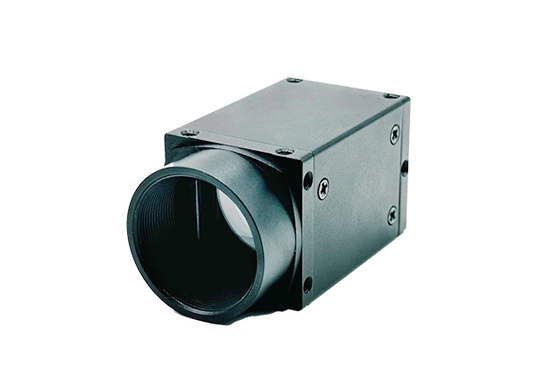

IMX Series Cooled SWIR Camera GHCB-XXT-U3

The camera is a scientific-grade, large-target, high-resolution InGaAs shortwave infrared camera, specially designed for low-illumination scientific research SWIR imaging and microscopic imaging. The camera resolution is 640x512/ 1280x1024/ 2592x2056, and the pixel size is 3.45μm/5μm. The frame rate of the camera is 70fps at full resolution, and ROI is supported.

Get a Quote 

Features of IMX Series Cooled SWIR Camera GHCB-XXT-U3

InGaAs detector, response wavelength 0.4μm-1.7μm
Black level correction, good image uniformity
USB 3.0 interface, compatible with vision standard
Driver-free, halcon, visionpro and other software supported
Easy for system integration and secondary development

Specification of IMX Series Cooled SWIR Camera GHCB-XXT-U3

Basic Specs

Type	GHCB-990T-U3	GHCB-991T-U3	GHCB-992T-U3
Sensor	Sony IMX990	Sony IMX991	Sony IMX992-AABA-C
Resolution	1280 x 1024	640 x 512	2592 x 2056
Pixel Pitch	5μm	5μm	3.45μm
Image Size	6.4mm x 5.12mm	3.2mm x 2.56mm	9.72mm x 7.09mm
Frame Rate	135Hz	240Hz	70Hz

Key Specs

Spectral Range	0.4μm ~ 1.7μm
Sensitivity	361mV
Pixel Depth	12bit
Pixel Format	Mono 8/12
Binning	Software 2x2
Frame Buffer	128M Bytes
User Parameter Area	32K Bytes
Data Interface	USB 3.0
Maximum Gain (multiple)	30
Exposure Time Range	0.013～3000ms
Cooling	TEC cooling temperature difference 20 ° C
Digital I/O	1 optocoupler isolated input, 1 optocoupler isolated output, 2 non-isolated input and output ports
Power Supply	Powered by 12V power adapter
Power Consumption	12W (cooling)
Dimensions	656580 mm (not including lens mount and rear interface)
Lens Mount	C Mount
Temperature	Working temperature -20℃~60℃, storage temperature -30~60℃
Humidity	Working humidity 0-80% (non-condensation), storage humidity 20-95% (non-condensation)
Driver	Directshow, Halcon, Labview, OCX, TWAIN Supported
Programming language pack	C/ C++/ C#/ VB6/ VB.NET/ Delphi/ BCB/ Python/ Java
Operating System	WINXP, WIN7/8/10 32&64 bit OS, Linux & ARM Linux driver, Android platform driver, MAC OS
Other Functions	Support RO custom resolution of any size, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead pixel coordinates, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame Rate adjustment, custom camera name, etc.
