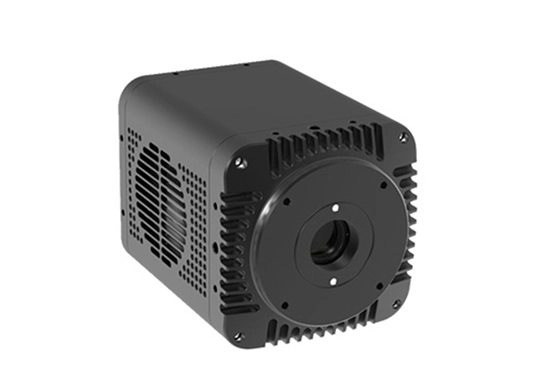

The sNIRII scientific-grade camera can be used in near-infrared zone II in vivo microscopy imaging equipment to test the performance of fluorescent probes, including labeling ability, fluorescence intensity, metabolic time, biological toxicity. As well as conducting research on cell labeling, tumor cell labeling, bacterial labeling, cerebral vascular embolism, etc.
InGaAs Shortwave Infrared detector 640 x 512
Vacuum package TEC-4 cooling
Precise temperature control, the temperature difference can reach 100 degrees Celsius below the ambient temperature
Spectral response range: 900nm-1700nm
15μm pixel
Global shutter
10GigE + USB3.0 interface supported
16-bit output
Multiple working modes: video mode/soft trigger mode/external trigger mode
On-site firmware update supported
Type | GHCT-SW640T4 |
Spectral Response | 900nm-1700nm |
Resolution | 640 x 512 |
Pixel Size | 15µm |
Target size | 3/4" |
ADC | 16 Bit Output (ADC 14Bit) |
Frame Rate | 16 Bit：100fps |
Hardware Image Cache | 512MB |
Conversion Gain | HG: 0.811e/ADU MG: 5.294e/ADU LG: 138.1e/ADU |
Dynamic Range | HG: 50.7dB MG: 66.8dB LG: 71.7dB |
Readout Noise | HG: 36.88e MG: 38.53e LG: 554.0e |
Full Well Charge | HG: 12.6ke MG: 83.9ke LG: 2135.4ke |
Max SNR | HG: 41dB MG: 49.2dB LG: 63.3dB |
Gain Range | HG/ MG/LG |
Exposure Time Range | 10us ~ 1 minute |
Shutter Mode | Global Shutter |
Binning | Software 2x2, 3x3, 4x4 |
Data Interface | 10GigE+USB3.0 |
Digital I/O | 1 optocoupler isolated input, 1 optocoupler isolated output, 2 non-isolated input and output ports |
Pixel Format | Mono16 |
TEC | 100°C below the ambient temperature |
Filter | 400-1800nm (Standard), 1030-1800nm (Optional) |
Power Supply | 19V power adapter power supply |
Power Consumption | <10W (uncooled) / <80W (cooled) |
Temperature | Operating Temp 20℃~ 60℃ Storage Temp -40℃~ 85℃ |
Humidity | 20% ~ 80% No Condensation |
Dimensions | 100 x100 x 142mm |
Weight | <1200g |
Lens Mount | C Mount, M42*0.75 |
Software | SDK |
Operating System | Win32/WinRT/Linux/macOS/Android |
Certificate | CE，FCC |
