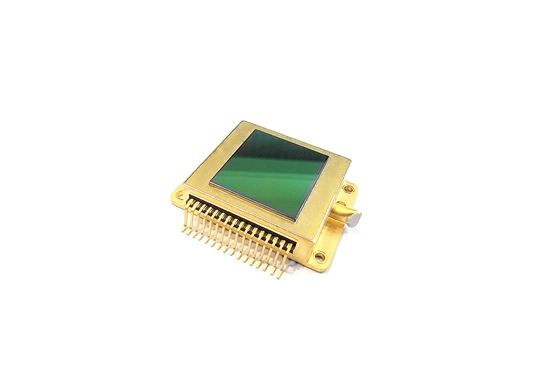

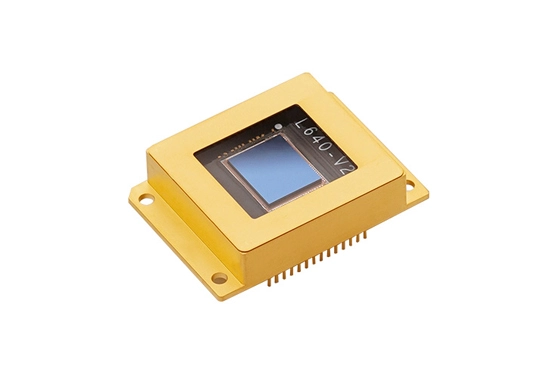

The ZXRC-SW1280-F15-XX series are short-wave focal plane detectors with 1280 ×1024 specifications. They have 1280×1024,1280×960 and 1024×1024 fixed window specifications, with any windowing function of the detector array. The detector array signal is read out through a four-channel/ eight-channel analog tap. This short-wave focal plane detector can meet the imaging requirements of high-precision and high frame rates for both military and civilian applications.
Product model | ZXRC-SW1280-F15-17 | ZXRC-SW1280-F15-20 | ZXRC-SW1280-F15-25 |
Area array size | 1280 × 1024 | ||
Pixel spacing | 15μm | ||
Spectral response | 0.9 ~1.7μm | 0.9~2.0μm | 0.9~2.5μm |
Effective area | 19.2 mm×15.36 mm | ||
Quantum efficiency | 60% | ||
Detection rate D* | 5×1011cm /zH12W-1 | 2×1011cm Hz1/2W-1 | 1×1011cm /zH12W-1 |
Readout noise | 30e- | ||
Dark current noise | 1.0×103e- | ||
Photo response non-uniformity | 5%~10% | ||
Operable pixel rate | ≥99.9% | ||
Detector output | Four-channel/ Eight-channel analog output | ||
Maximum speed of single channel tap | ≥ 20MHz | ||
Maximum frame rate | 60Hz (Four-channel output)/120Hz(Eight-channel output) | ||
TEC refrigeration and temperature measurement | Built-in (optional) | ||
Operating conditions | -40 ℃~60 ℃, humidity 0~80% RH | ||
Storage conditions | -40 ℃~70 ℃, humidity 0~80% RH | ||
Power supply voltage | 3.3V ~ 4V | ||
Exposure method | SNAPSHOT | ||
Readout method | Integrate Then Read (ITR)/Integrate While Read (IWR) | ||
Full well capacity | 5.3Me- (ITR) /4.6Me- (IWR) | ||
Windowing of area array | Three fixed array specifications, optional for any windowing | ||
Power consumption | ≤ 180mW (excluding TEC refrigeration) | ||
Encapsulation connection interface | PGA | ||
